Create Archive Database and Enable User Archive in Exchange 2013

This simple guide shows you how to create an archive database as well as enabling archiving on a user’s mailbox. The database we are creating is a normal DB in Exchange 2013.

Open up the Exchange Admin Center:

archive1

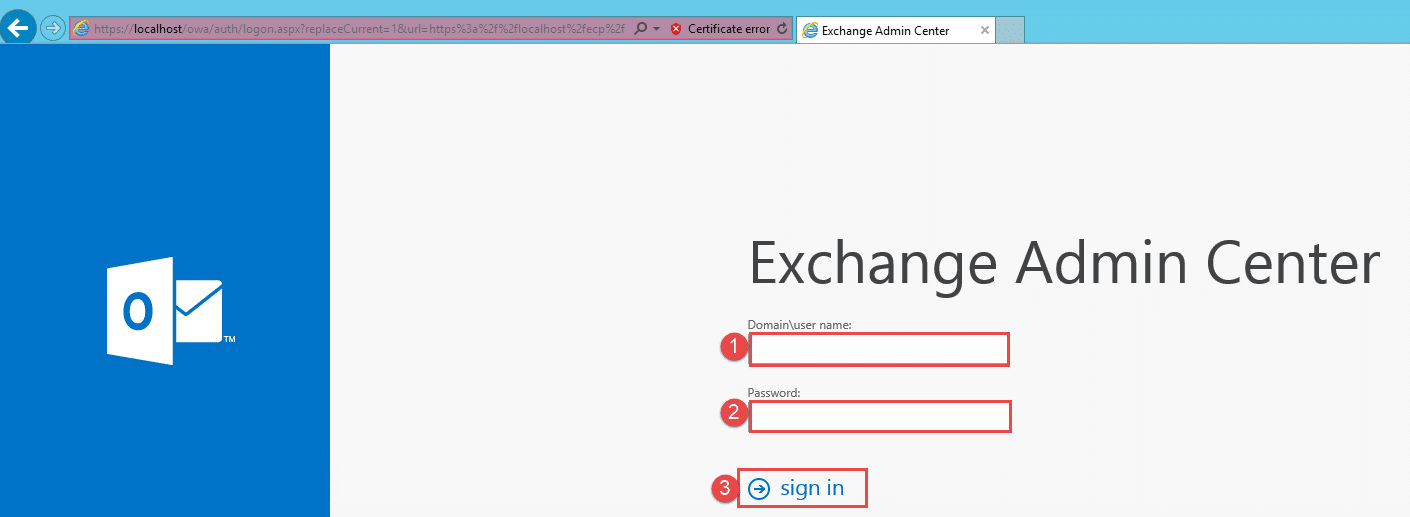

  • Step 1 -> Enter in the user that has access to create databases. E.g. Domain\username
  • Step 2 -> Enter in the password
  • Step 3 -> Click Sign in

archive2

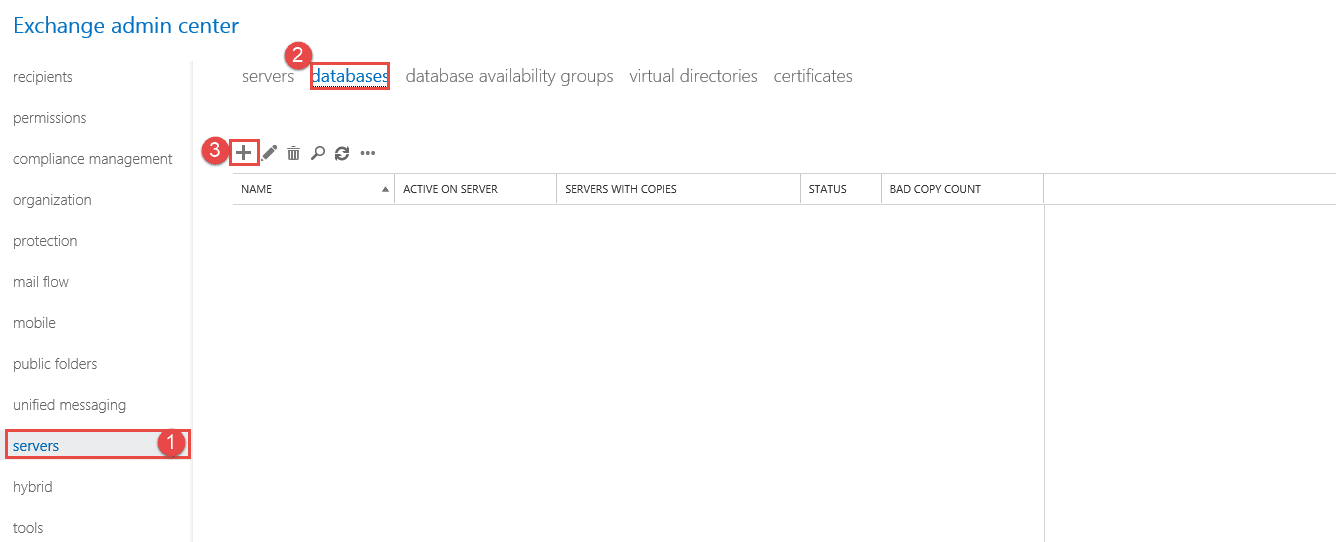

  • Step 1 -> In the EAC (Exchange Admin Center) click on Servers.
  • Step 2 -> Click on databases
  • Step 3 -> Click on the + button

archive3

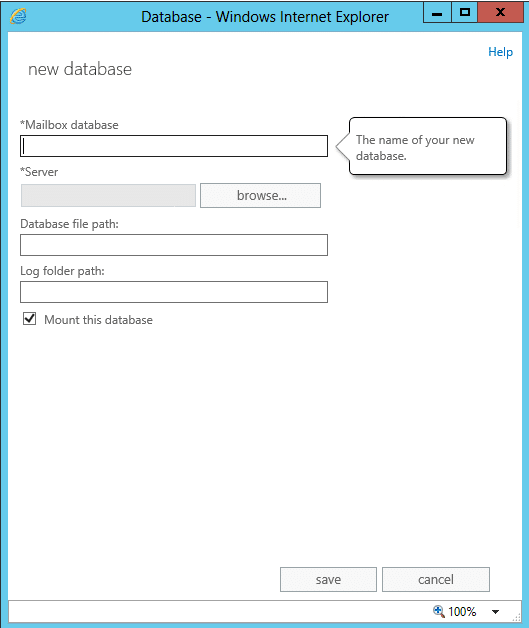

  • Once you have clicked the + button in the previous screen you will be presented with this window.

archive4

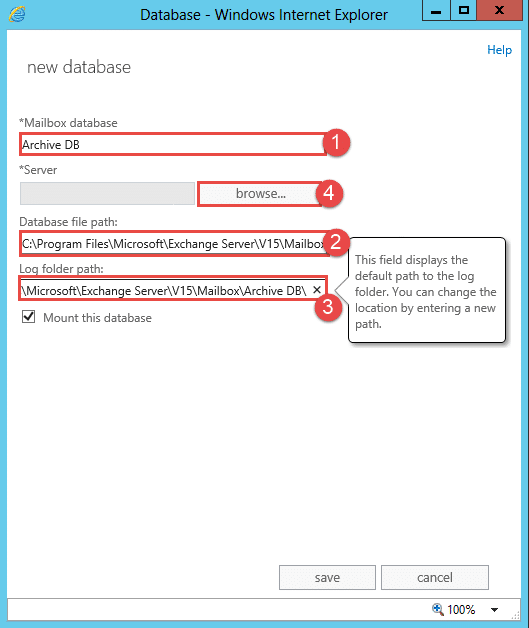

  • Step 1 -> Enter a name for the Archive DB.
  • Step 2 -> Enter the Database file path.
  • Step 3 -> Enter the log folder path.
  • Step 4 -> Click the browse button to select a servers.

archive5

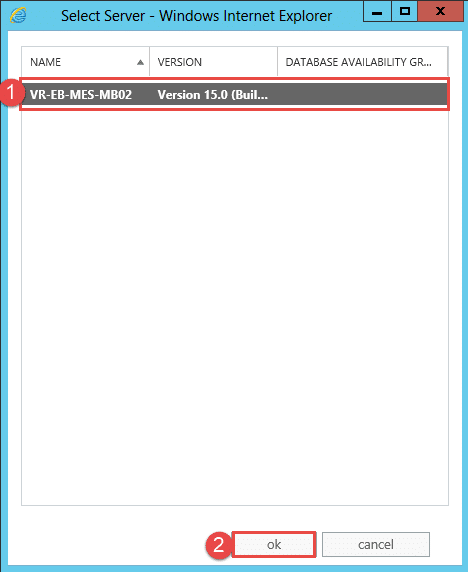

  • Step 1 -> Select the server
  • Step 2 -> Click on OK.

archive6

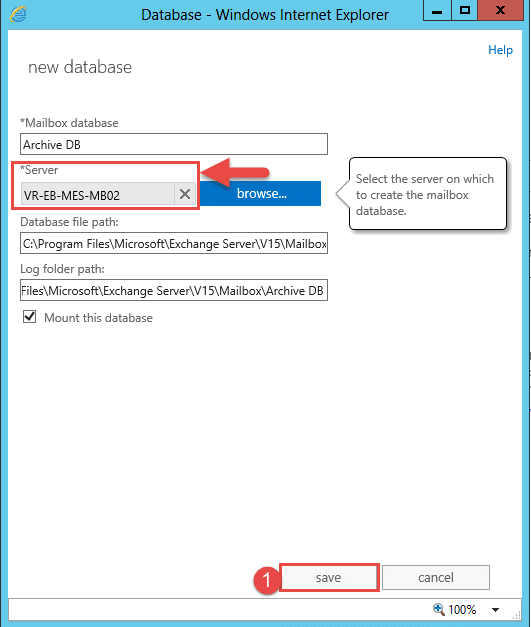

  • As you can see the server is now shown in the text box.
  • Step 1 -> Click save to create the DB.

archive7

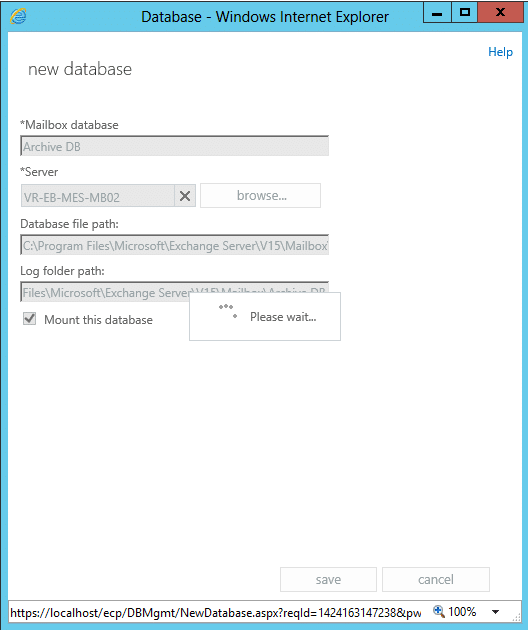

  • Progress window.

archive8

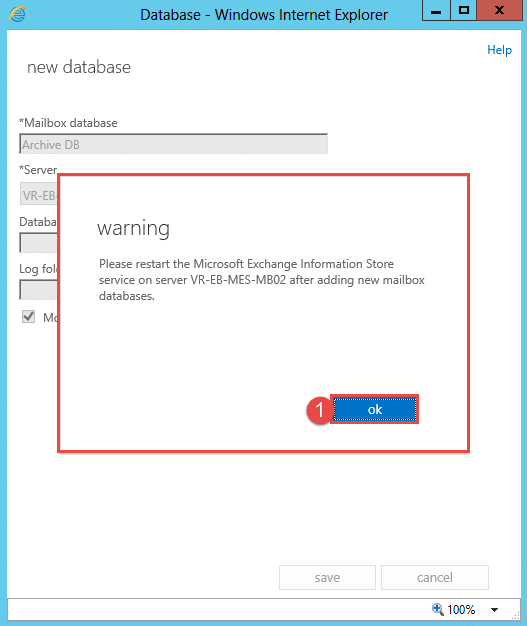

  • A warning will appear to restart the Information Store after the DB has been created.
  • Step 1 -> Click OK.

archive9

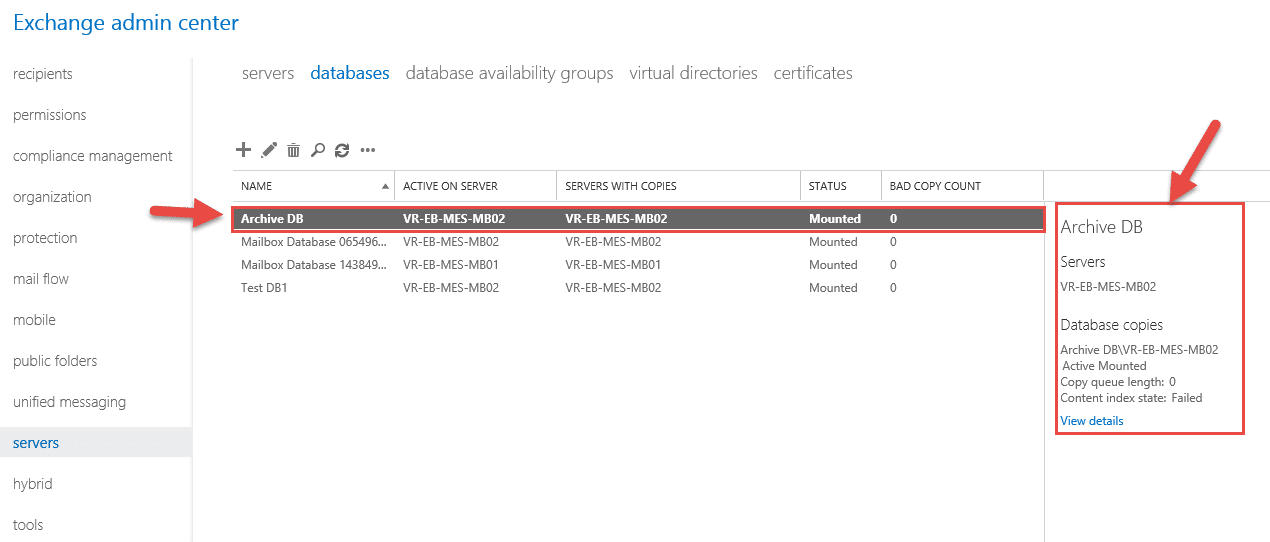

  • As shown above, the Archive DB has been created.

Enable Archiving on a mailbox:

archive10

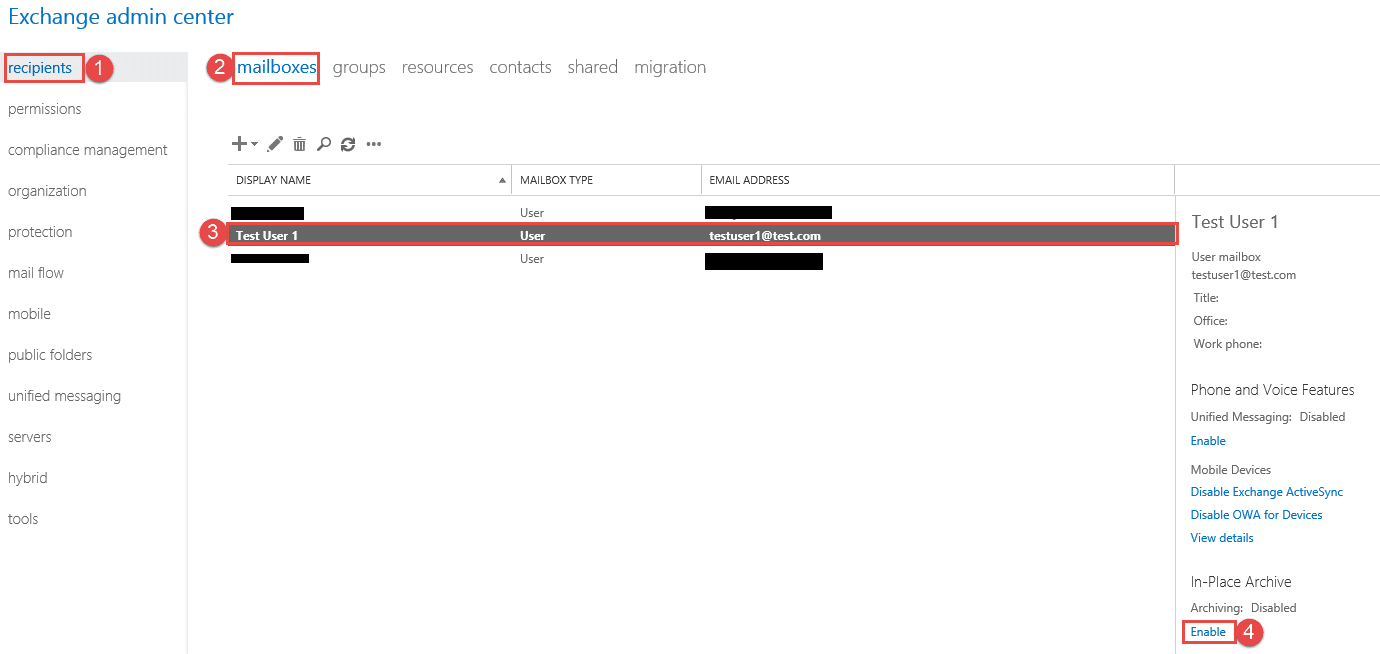

  • Step 1 -> In the EAC, click on Recipients.
  • Step 2 -> Click on Mailboxes.
  • Step 3 -> Click on the user’s mailbox you want to enable archiving on.
  • Step 4 -> Click on the Enable button on the right hand side under In-Place Archive.

archive11

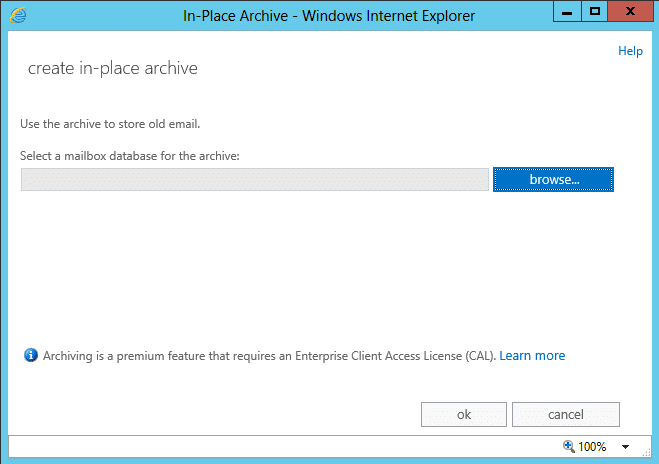

  • The following window will show.
  • Click the Browse button.

archive12

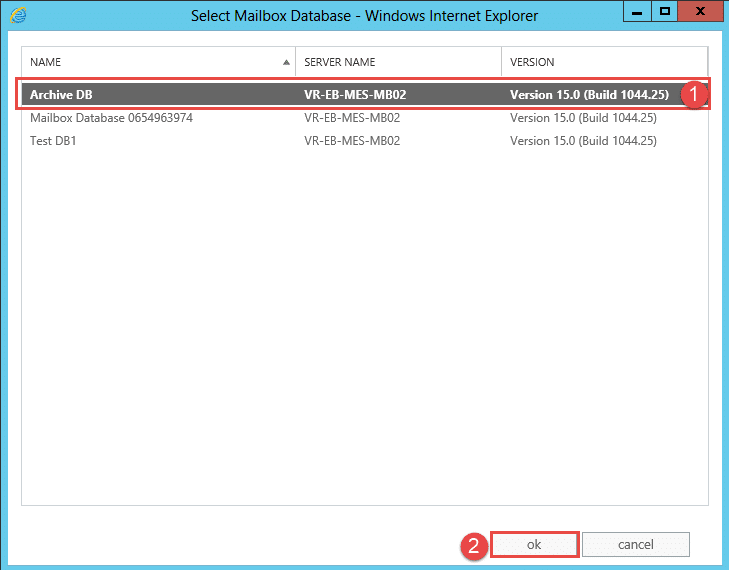

  • Step 1 -> Select the Archive Database we just created.
  • Step 2 -> Click OK.

archive13

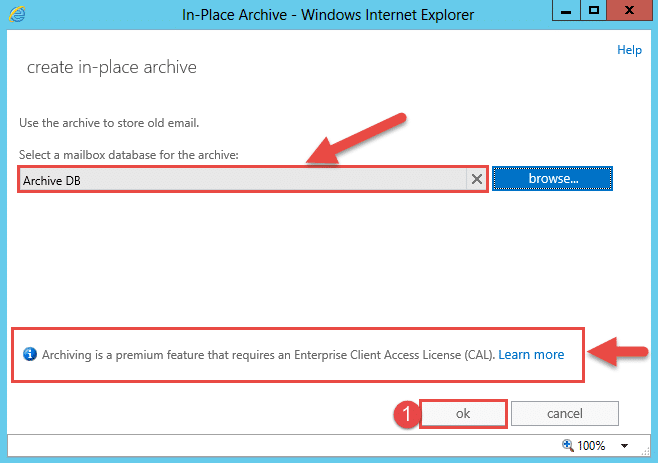

  • The DB will show as above after we selected it.
  • Take note that you need to have an enterprise CAL to use the Archiving Feature.
  • Step 1 -> Click OK.

archive14

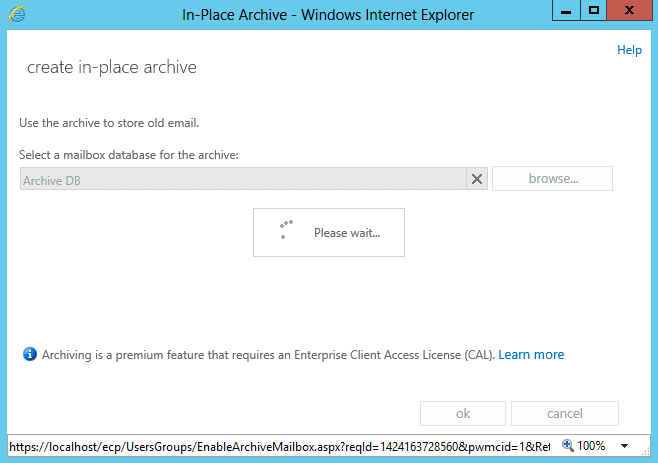

  • Progress screen.

archive15

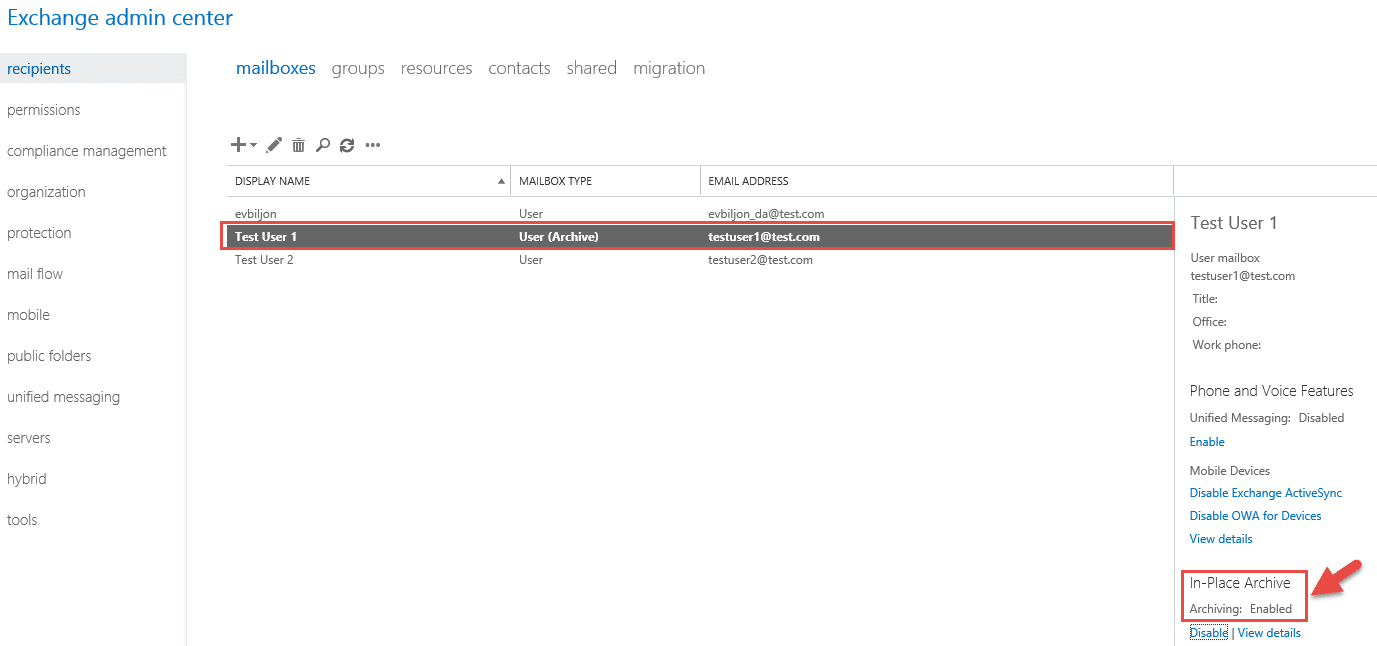

  • Back in the EAC you can now see that archiving has been enabled for the user.

Hope it helps.
